MIRELON POLAR thermal insulated tube

Documents to download

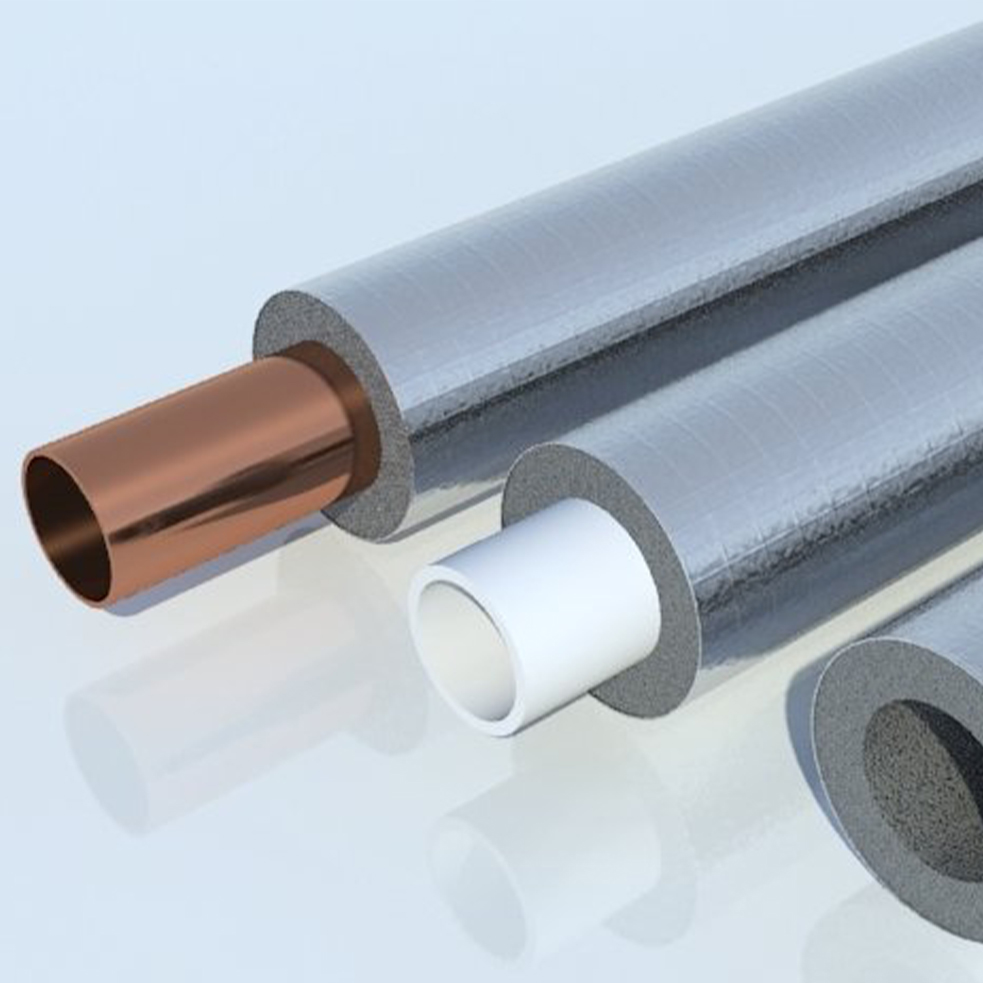

Thermal insulation tube made of polyethylene foam laminated with reinforced aluminum foil

With excellent thermal insulation, heat reflection and greater UV resistance, washable and hygienic

Use

  • insulation for cold piping lines
  • in areas that need to be washed for hygienic reasons
  • in health care facilities
  • in sports facilities
  • in food processing operations

Properties

  • greater resistance to UV radiation
  • greater dimensional stability
  • greater mechanical resistance
  • greater vapor tightness
  • can be easily washed

Specifications

  • with a protective aluminum foil reinforced grid
  • not cut lengthwise
  • length: 2 m
  • wall thickness: 6, 9, 13, 20, 25 mm
  • inner diameter: 12 to 134 mm
  • connecting AL adhesive tape in the length of the tubes purchased FREE

FAQ

1) What sizes are good for insulating cold piping lines, cold and hot utility water pipes and central heating?

The right dimensions for insulation:

  • cold water lines: piping with thicknesses of 6 or 9 mm and more
  • hot water lines: piping with thicknesses of 9 or 13 mm and larger
  • central heating pipes: piping with thicknesses of 13, 20 and 25 mm
  • cold piping lines: piping with thicknesses of 20 mm and more

2) I need walls thicker than what you're offering. Can this problem be solved?

  • thicknesses for small diameters can be increased by using an additional tube with a greater diameter
  • thicknesses for large diameters can be increased by using MIRELON strips

3) Are pipes good for using outdoors?

  • yes, pipes can be used outdoors, but it's necessary to protect them from UV radiation

4) What range of temperature are pipes good for?

  • the insulation of lines with temperatures from -65°C to 90°C.
